TECHNICAL SPECIFICATION:

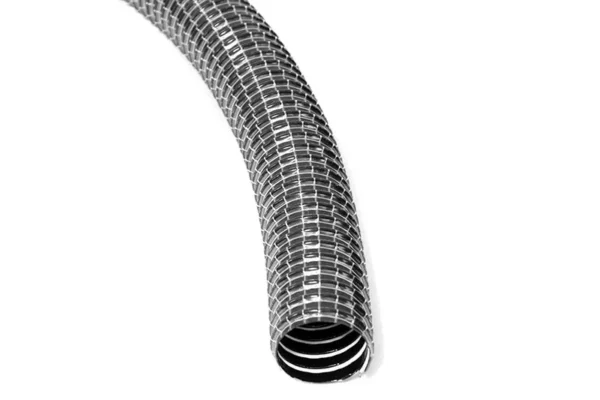

Type: Reinforced PVC suction hose – sold by the metre
Internal diameter: 32 mm
External diameter: 38 mm
Wall thickness: 0.5 mm
Minimum bending radius: 38 mm
Working pressure: 1.5 bar
Vacuum: 350 mbar
Weight: approx. 0.291 kg/m
Operating temperature range: 0°C to +85°C
Colour: Grey

DESCRIPTION:
Professional 32 mm PVC suction hose designed for cleaning machines, industrial vacuum cleaners, and air and dust transport systems.
Thanks to its highly flexible construction, the hose is ideal for scrubber dryers, workshop vacuum cleaners and industrial installations.

The hose is made from two layers of soft PVC reinforced with textile yarn and a PVC-coated spring steel spiral.
This construction provides excellent mechanical strength, high flexibility and resistance to bending and compression.

The 32 mm suction hose is commonly used as a hose for scrubber dryers, industrial vacuum cleaners and cleaning machines, as well as in systems for transporting air, dust and lightweight materials.

Its low weight of approx. 0.291 kg/m and small bending radius make the hose easy to route even in hard-to-reach areas of cleaning equipment.

KEY FEATURES:
• 32 mm suction hose for cleaning machines
• very high flexibility
• two-layer PVC construction
• reinforced with textile yarn and PVC-coated steel spiral
• excellent mechanical properties
• high tensile resistance
• good chemical resistance
• lightweight construction – approx. 0.291 kg/m
• small bending radius – easy installation

APPLICATION:

hose for industrial vacuum cleaners
hose for scrubber dryers and cleaning machines
suction hose for dirty-water discharge
hose for transporting air and dust
air extraction systems and industrial installations
protective hose for cables and installations

PLEASE NOTE: The hose is sold by the metre. If couplings or plugs are to be fitted, they should be selected for an internal diameter of 32 mm. If you have any questions, please contact our technical advisor.
