TECHNICAL SPECIFICATION:
Type: long gear / keyed gear
Manufacturer: Kränzle
Manufacturer code: 50127
Catalogue description: Zahnrad mit Keil lang
Number of teeth: 14
Mounting position: side brush drive
Part type: sweeper transmission / drive component

DIMENSIONS:
• height – 42 mm
• gear diameter – 31 mm
• inner diameter – 12 mm

DESCRIPTION:

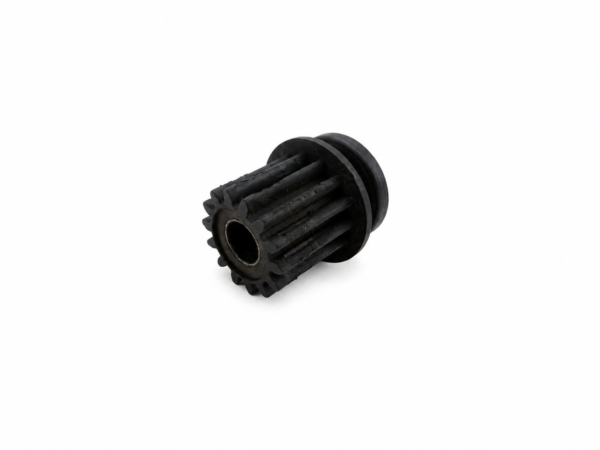

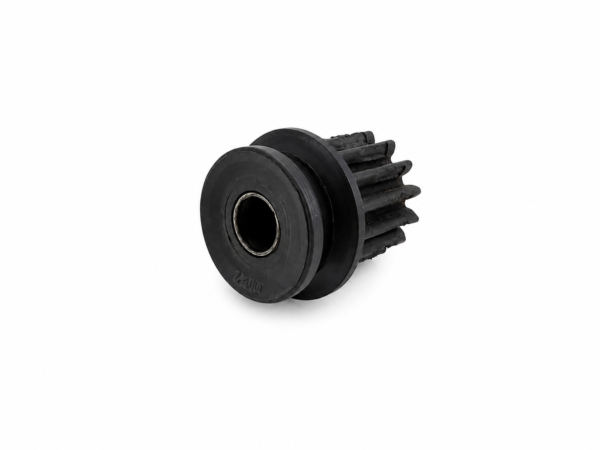

Kränzle 50127 long keyed gear designed for the Kränzle 2+2 sweeper. The part operates in the side-brush drive system and transfers movement correctly to the sweeper working component.

Wear or damage to the gear may cause side-brush rotation problems, drive skipping or uneven sweeping-mechanism operation. The component is intended for service and repair of the sweeper transmission and drive system.

COMPATIBLE WITH:
• Kränzle 2+2

PLEASE NOTE:
Before purchasing, compare the part with the original component or machine diagram and confirm that the catalogue number matches your model. If you have any questions, please contact our technical department.

PRICE APPLIES TO: 1 piece
ORIGINAL CODE: 50127
