TECHNICAL SPECIFICATION:
Type: Substitute with OEM quality
Condition: New
Product type: brush motor
Minimum voltage: 24 V
Current: 10 A
Rotational speed: 130 rpm
Motor type: DC
Insulation class: F
Protection rating: IP44
CE certification: Yes
S2 duty cycle: 20 min
Number of connectors: 1
Shaft type: H
Cooling fan: none

MOTOR DIMENSIONS:
Overall length: 256 mm
Stator housing length: 110 mm
Stator diameter: 82 mm

DESCRIPTION:

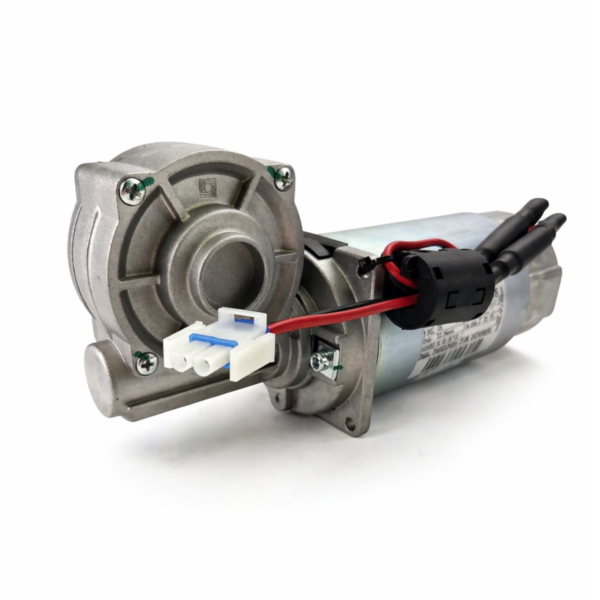

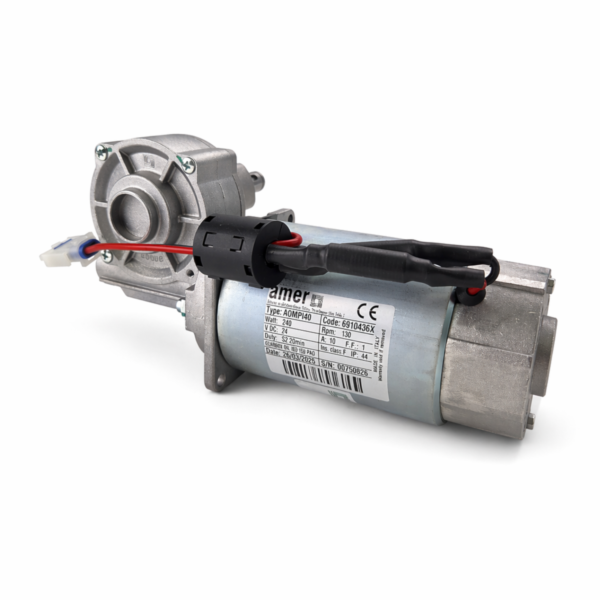

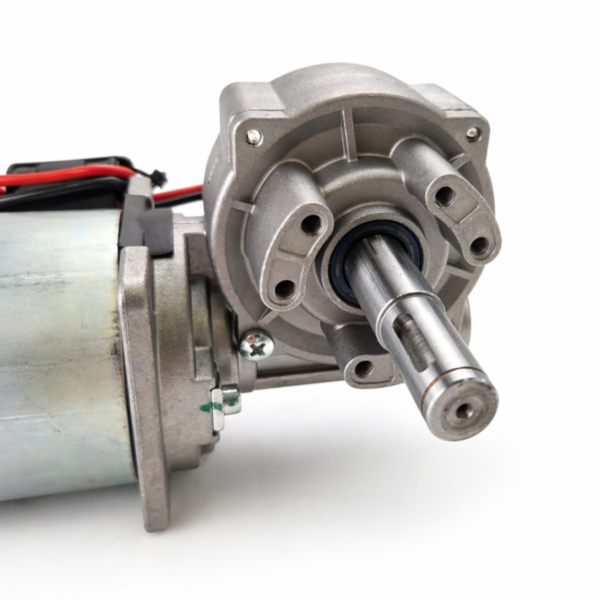

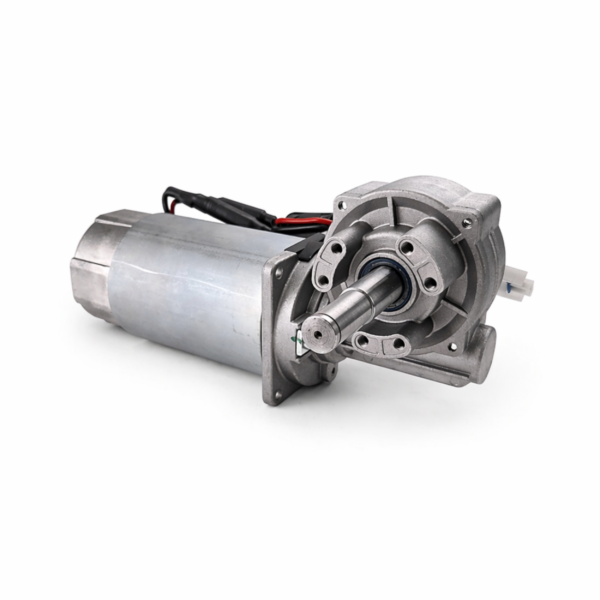

High-quality brush motor designed for Hako and Wirbel cleaning machines.
This is a new OEM-quality component designed to operate at 24 V and 10 A. The motor reaches a speed of 130 rpm and operates on direct current, making it a suitable solution for driving the brush in compatible machines.
The product has an overall length of 256 mm, a stator housing length of 110 mm and a stator diameter of 82 mm. It is equipped with 1 connector, an H-type shaft, insulation class F and an IP44 protection rating.
It is a practical choice for users looking for good fitment, durability and reliable performance in everyday machine operation.

KEY FEATURES:
⦁ Brush motor
⦁ OEM quality
⦁ Voltage: 24 V
⦁ Current: 10 A
⦁ Rotational speed: 130 rpm
⦁ Motor type: DC
⦁ Motor dimensions: 256 mm x 110 mm x 82 mm
⦁ Protection rating: IP44
⦁ Insulation class: F
⦁ CE certified

COMPATIBLE WITH:

Hako:
⦁ B12

Wirbel:
⦁ Rapit 15 M38

PLEASE NOTE:
Before purchasing, please make sure that the selected product is compatible with your machine. If you have any questions, please contact our technical department.

ORIGINAL CODE: 01272430 / 6910436X / 26.0045.00
CODE: CP-SIL-SZC-94857
