TECHNICAL SPECIFICATION:
Type: Original
Condition: New
Type: squeegee actuator
Designation: 12A
Application: Willmop 35B and Willmop 50 machines from S/N: 23080567
DIMENSIONS:
Overall length: 112 mm
DESCRIPTION:

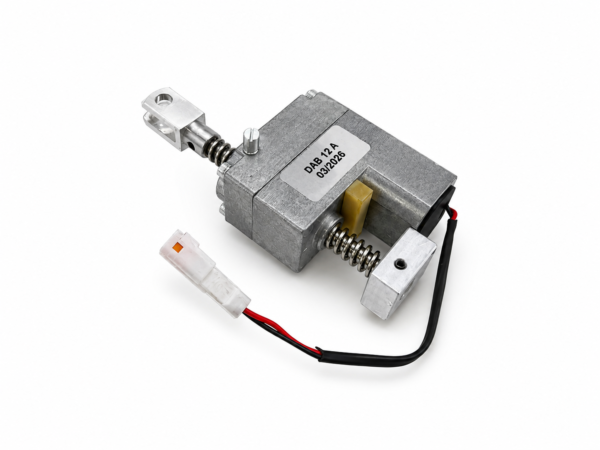

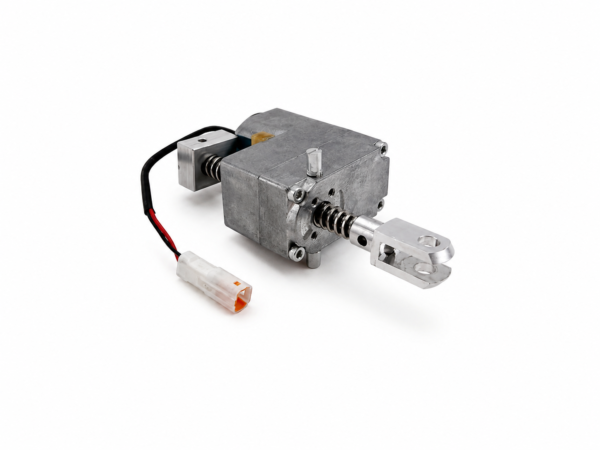

Original TSM 4430-0003-0 / 4430-0002-0 squeegee actuator, designed for Willmop 35B and Willmop 50 cleaning machines from serial number S/N: 23080567.
The component is responsible for raising and lowering the squeegee, allowing it to be correctly positioned during machine operation and transport.
A fully functional actuator ensures correct control of the squeegee position and supports effective water collection from the cleaned surface.
The actuator has an overall length of 112 mm and is intended to replace a worn or damaged component in the squeegee lifting system.
KEY FEATURES:
⦁ Squeegee raising and lowering actuator
⦁ Original TSM
⦁ Designation: 12A
⦁ Overall length: 112 mm
⦁ Ensures correct squeegee positioning
⦁ For Willmop 35B and Willmop 50 machines from S/N: 23080567
NOTE:
Before purchasing, please make sure that the selected product is suitable for your machine and its serial number. For the Willmop 50 model, the actuator is intended for machines from S/N: 23080567. If you have any doubts, please contact our technical department.
ORIGINAL PART NUMBER: 4430-0003-0 / 4430-0002-0 CODE: CP-SIL-SSA-94987
