TECHNICAL SPECIFICATIONS:
Condition: New
Type: High-frequency rectifier
Supply voltage: 1-phase 230V AC
Charging voltage: 12V / 24V
Charging current: 10–100A
Capacity of batteries charged (6-8h): 20-800Ah
Capacity of batteries charged (9-12h): 40-1200Ah
Capacity of batteries charged: >1000Ah (current 65-100A)
Battery types: AGM, LiFePO4, lead-acid gel (GEL), lead-acid wet (WET)
Dimensions: 380 mm x 320 mm x 130 mm
Weight: 6 kg
Protection rating: IP31
DESCRIPTION:

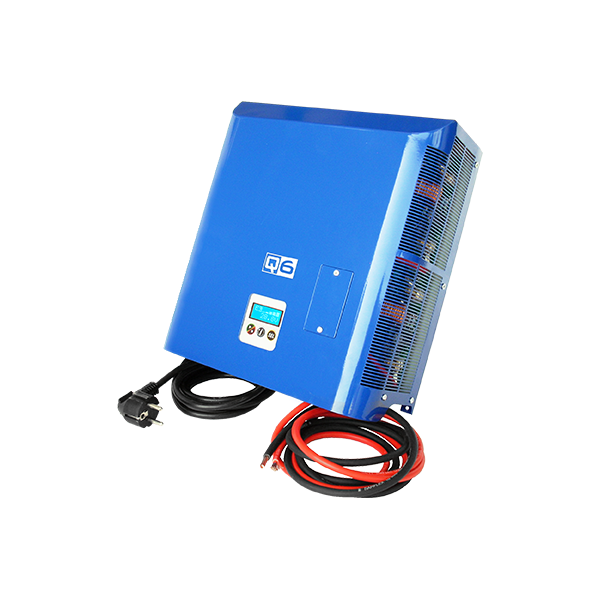

High-quality high-frequency charger designed for all types of batteries, including one specially adapted to work with AES AGM Trojan batteries in Comac cleaning machines.
Allows selection of charging parameters (voltage, current and charging curves) using the Program Shooter.
Equipped with an LCD display showing voltage, current, capacity (Ah) and battery charge status.
Features protection against short circuits, reverse polarity and overheating.
Starts automatically when the battery is connected. The set includes a power cable with a Schuko plug.
Product designed for industrial applications.
Key features:
• Programming via the Program Shooter
• Automatic start-up upon battery connection
• LCD display: voltage, current, Ah, state of charge
• Protections: short circuit, reverse polarity, overheating
• Power cable with Schuko plug
• Batteries supported: AGM, LiFePO4, GEL, WET
• Charging voltage: 12V / 24V
• Charging current: 10–100A
• Dimensions: 380 x 320 x 130 mm
• Weight: 6 kg
• Protection rating: IP31
The charger is compatible with the following models:
Comac Optima 85
Comac Optima 100
NOTE:
Before purchasing, please ensure that the charger is compatible with your machine and battery. If in doubt, please contact our technical advisor.
