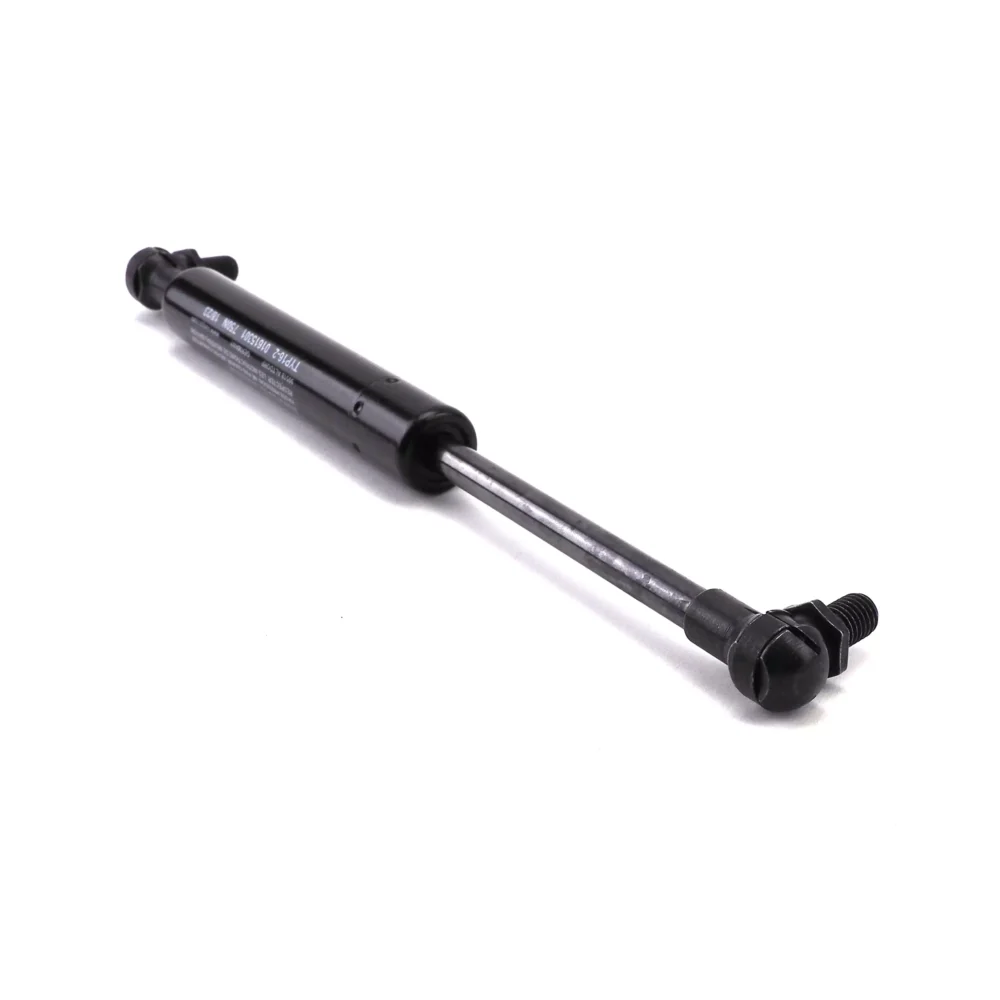

GAS SPRING – ACTUATOR SMG

€ 163,32 with Tax

TECHNICAL SPECIFICATIONS:
Type: SUSPA Liftline 16-2 gas spring
Condition: New
Clamping force: 200 N
Overall length (C-C): approx. 256 mm
Piston rod stroke: approx. 95 mm
Cylinder diameter: 18.5 mm
Piston rod diameter: 8 mm
Country of manufacture: Germany

DESCRIPTION:
A high-quality gas spring from the German manufacturer SUSPA, type Liftline 16-2, with an expansion force of 200 N.
The product features a durable, corrosion-resistant design, with a nitrogen-coated piston rod and a cylinder protected against corrosion.
Designed for a wide range of industrial, furniture, automotive and technical applications.
The spring meets the highest quality standards and can be used as a replacement for original gas springs.

Key features:
• Clamping force: 200 N
• Overall length: approx. 256 mm
• Piston rod stroke: approx. 95 mm
• Cylinder diameter: 18.5 mm
• Piston rod diameter: 8 mm
• Manufactured in Germany (SUSPA GmbH)

Suitable for applications:

Industrial automation
Technical enclosures and covers
Machinery and mechanical equipment
Furniture (e.g. lifts, hinges)

NOTE:
Before purchasing, please check that the length, force and mounting method are compatible with the requirements of your equipment. If in doubt, please contact our technical advisor.

CODE: COMAC-435678

1 in stock

Manufacturer: SUSPA liftline
Country of manufacture: Germany
Type: 16-2
Piston rod diameter (mm) – 8
Centre-to-centre distance (mm) – 483
Piston rod length (mm) – 200

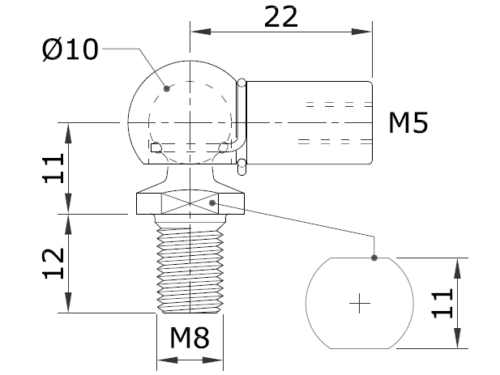

Connection type on the piston rod side – type D
Maximum thrust: 200N
COMAC catalogue number: 435678

Type 16-2 gas springs are hydropneumatic components consisting of a pressure cylinder and a piston rod with a piston.
Nitrogen is used as the working gas in type 16-2 springs. When compressed, the nitrogen generates pressure acting on the piston, providing the force necessary for the return movement of the piston rod.
The oil in the gas spring chamber and the damping system control the extension speed of the piston rod.
