TECHNICAL SPECIFICATIONS:
Type: Gas spring
Manufacturer’s code: 3889NS 005/25 JK06
Condition: New
Force F1: 150 N
Force F2: 15 N
Piston stroke: 90 mm
Piston rod diameter (mm) – 6
Centre-to-centre distance (mm) – 278
Piston rod length (mm) – 102
Piston connection type – Type B
Manufacturer: Stabilus
Country of manufacture: Germany
COMAC catalogue number: 433953
DESCRIPTION:

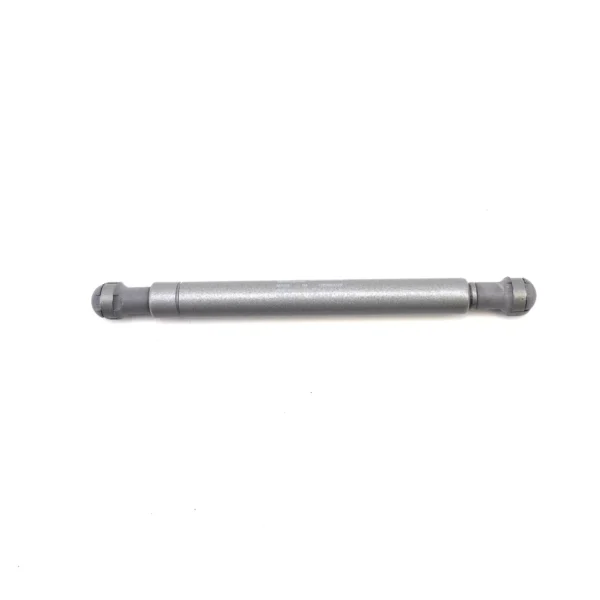

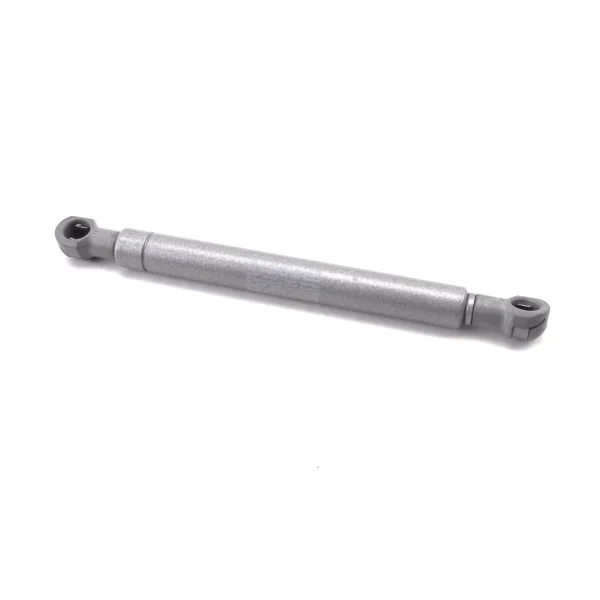

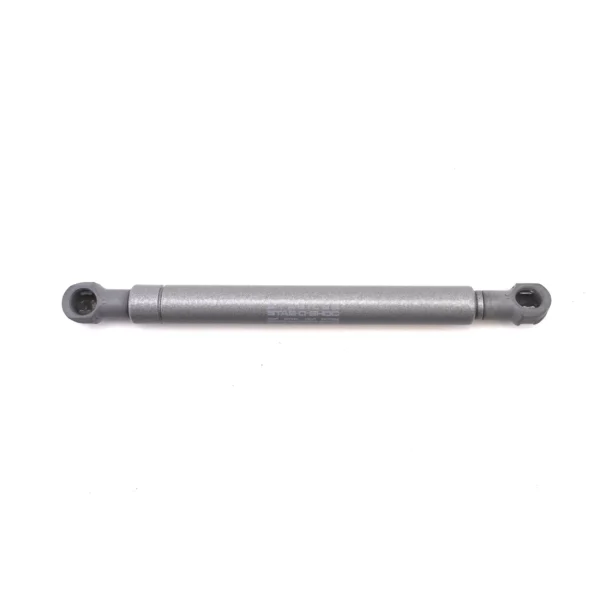

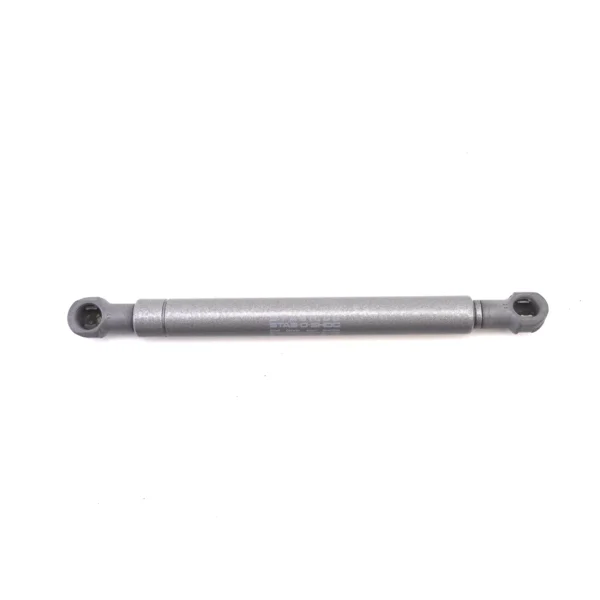

The Stabilus 3889NS 005/25 JK06 gas spring is a high-quality component manufactured in Germany.
It features a force of 150 N and a piston stroke of 90 mm, ensuring precise and stable operation in COMAC cleaning equipment.
The product complies with the manufacturer’s technical specifications.
Key features:
• Model: 3889NS 005/25 JK06
• Force F1: 150 N
• Force F2: 15 N
Piston rod diameter (mm) – 6
Centre-to-centre distance (mm) – 278
Piston rod length (mm) – 102
Piston connection type – type B
• Piston stroke: 90 mm
• Manufacturer: Stabilus
• Country of manufacture: Germany
• COMAC catalogue number: 433953
Fits COMAC models:
Innova 70S
CS 700B
CS 700H
CS 800B
CS 700B NEW 2021
CS 800B NEW 2021
PLEASE NOTE:
Before purchasing, please ensure that the product is compatible with your machine. If in doubt, please contact our technical advisor.
